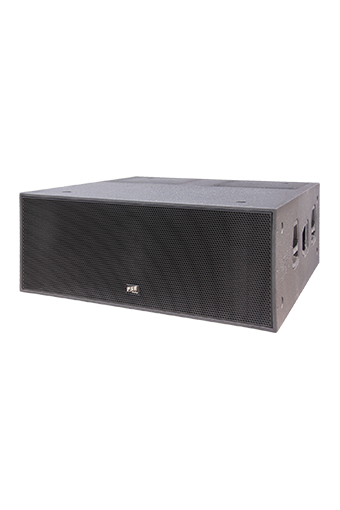

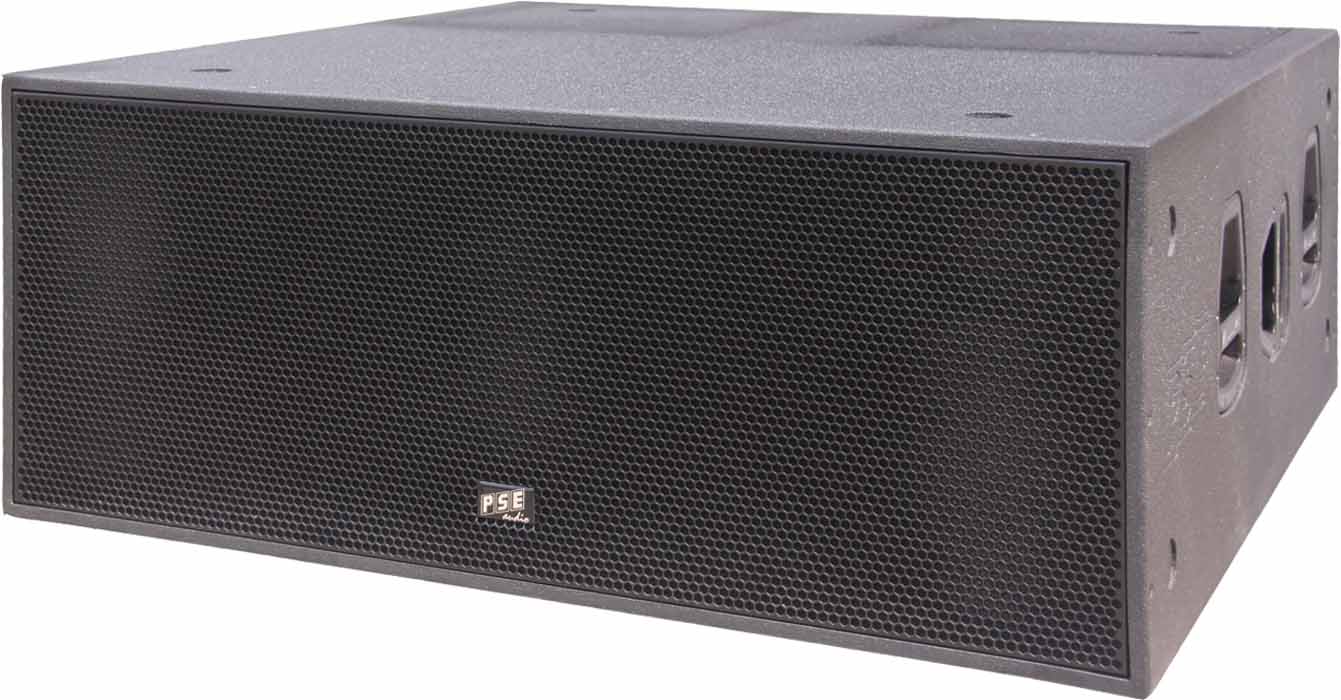

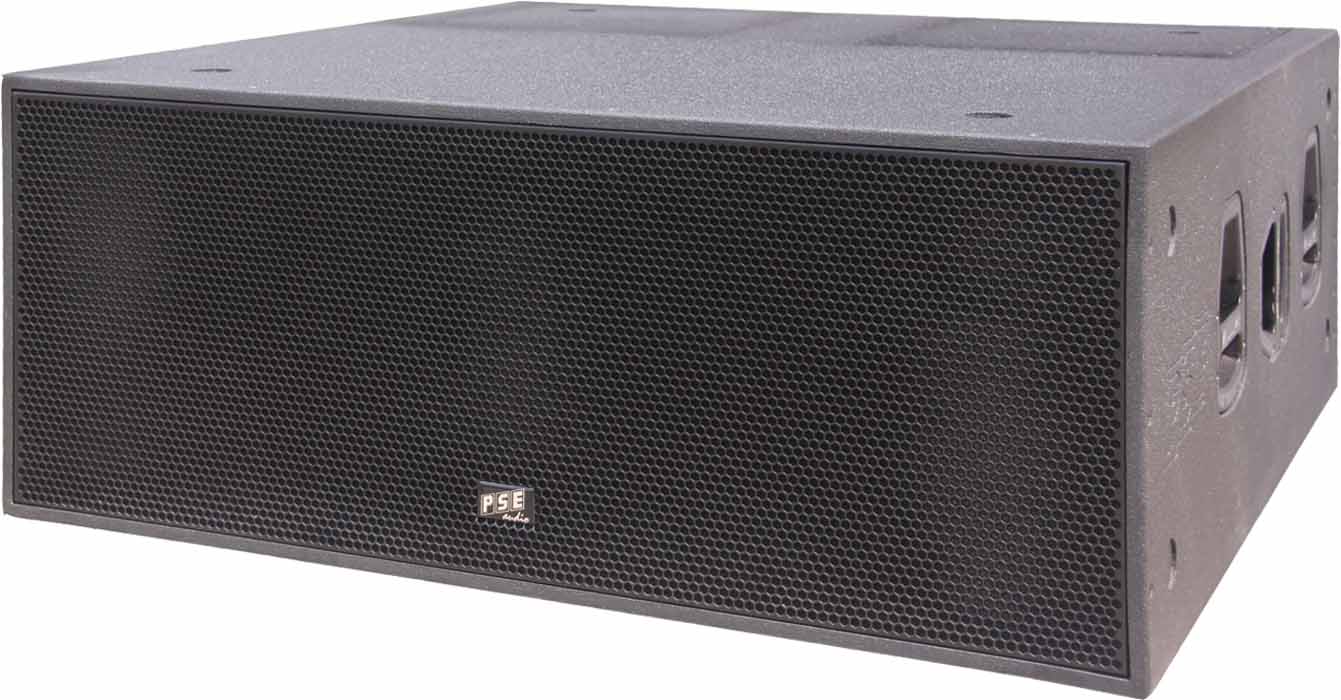

basssub SB-82



basssub SB-82          basssub SB-82

SB-82 general description

Features SB-82

  • 2x18" neodymium Speaker (5" voice coil)
  • hybrid bass horn design
  • super low-slung
  • European truck space optimized dimension
  • 4 steering caster on the back side
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 8 x rubber feet
  • stackable in two directions
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white
  • optional without wheels
  • optional front board with butterfly locks
  • optional detto. with 4 steering caster


basssub SB-82


for stacking and rigging:
H: system 1200
V: system 480

  • extremely compact and truck space saving design
  • 3 dimension optimized for Euro-pallet norm truck
  • upright loading: 5 x 48cm = 240cm width
  • flat loading: 2 x 120cm = 240cm width
  • 2 rows upright stacked = 240cm width / 240cm height
  • flat and upright loading can be combined
  • 2 x width (120cm) = 5 x height (48cm)
  • 1.2m (w/o caster) loading length up to 10 cabinets
  • 1.2m loading length up to 30,000W / 90,000W peak
SB-82 specification
rated impedance (optional) 8Ω (4Ω,16Ω)
power handling capacity AES/peak* 3000W / 9000W*
available frequency response** 28Hz-180Hz
max. sound pressure level*** 142dB
LF-transducer rated size 2x18"
LF-transducer voice coil diameter 5"/125mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 1200/480/1200
weight 111kg

* peak 10ms, with TD-8000 amplifier and SB-82 max controller setup
** -10dB with SB-82 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and SB-82 SPL controller setup
