Galaxy series GX-6

Galaxy-GX-series high end multifunction coaxial series

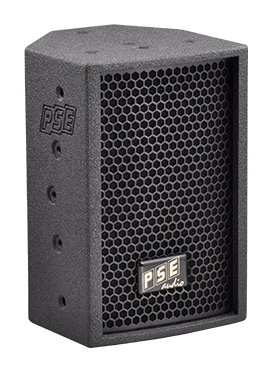

GX-6

Galaxy series GX-6          Galaxy series GX-6
GX-6 general description

Features GX-6

  • 1x6.5"/1.35" coaxial speaker neodymium
  • 6.5" transducer 52mm /2" voice coil
  • 6.5" transducer neodymium magnet
  • compression driver 1.35"/34mm voice coil
  • compression driver neodymium magnet
  • high frequency horn 1" throat
  • horn directivity 80° conical
  • multifunction housing
  • wedge angle 45° and 30°
  • 14 M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application GX-6

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance GX-6

  • high-mid unit for fix installation
  • floor monitor
  • near fill
  • delay line



Galaxy series GX-6

GX-6 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 300W / 600W*
available frequency response** 90Hz-20kHz
max. sound pressure level*** 124dB
directivity (h x v) 80° conical
LF-transducer rated size 6.5"
LF-transducer voice coil diameter 52mm/2"
LF-transducer magnet structure neodymium
HF-compression driver rated size (VC) 34mm/1,35"
HF-compression throat diameter 1"
HF-compression magnet structure neodymium
dimension h/w/d in mm 300/200/210
weight 7kg

* peak 10ms, with TD-8000 amplifier and GX-6 max controller setup
** -10dB with GX-6 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GX-6 SPL controller setup
