linearray maxum

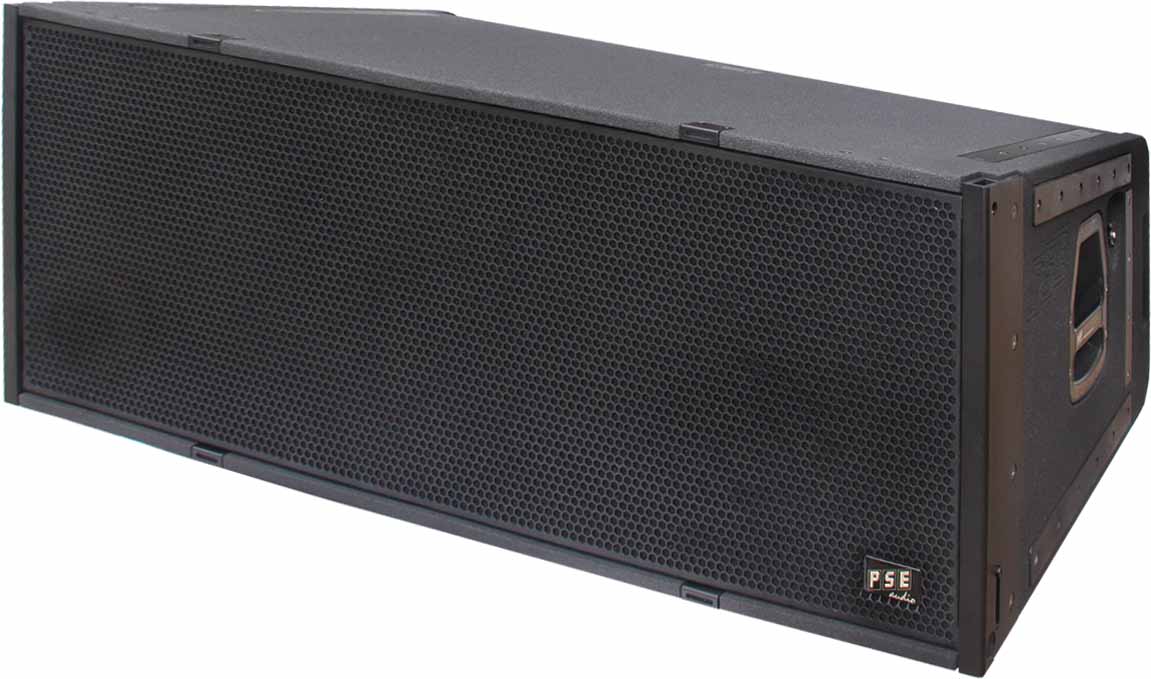

Line Array speaker cabinet

maxum

linearray maxum          linearray maxum

maxum general description

Features maxum

  • 2x15" neodymium speaker (4"voice coil)
  • 2x8" neodymium speaker horn loaded (2" VC)
  • 3x3" (75mm) neodymium compression driver
  • high frequency planar wave guide horn
  • constant wave guide horn directivity h90°/v6°
  • mid frequency compression horn
  • constant horn directivity midrange 90° horizonal
  • design integrated rigging accessories
  • curving angles 0°-6° in 1° steps
  • 3-point rigging structure
  • 2 Neutrik speakon 8-pin
  • speaker signal link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing 15mm,18mm, 28mm plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Appliance maxum

  • line array unit for mobile and touring PA
  • line array unit for fix installation

Application maxum

  • live events, live entertainment
  • stadium broadcasting,
  • discotheque and mobile disco event
  • meeting halls broadcast system

extended system components

  • SB-82 subwoofer horn (2x18")
  • VB-218pro subwoofer (2x18")
  • VB-218 subwoofer (2x18")

linearray maxum

linearray maxum

linearray maxum

linearray maxum

maxum specification
rated impedance LF (optional) 8Ω (16Ω, 4Ω)
rated impedance MF (optional) 16Ω (8Ω, 4Ω)
rated impedance HF (optional) 24Ω (5.33Ω)
operation mode 3-way bi-amp
power handling capacity LF AES/peak* 2000W / 6000W*
power handling capacity MF AES/peak* 500W / 1500W*
power handling capacity HF AES/peak* 240W / 720W*
available frequency response** 35Hz-20kHz
max. sound pressure level*** 148dB
directivity (h x v) 90°/6°
low frequency transducer rated size 2x15"
low frequency transducer voice coil diameter 4" (100mm)
low frequency transducer magnet structure neodymium
midrange-transducer (horn loaded) rated size 2x8"
midrange-transducer voice coil diameter 2" (52mm)
midrange-transducer magnet structure neodymium
HF-compression driver rated size (VC) 3x3" (75mm)
HF-compression driver throat diameter 1.4"
HF-compression driver magnet structure neodymium
dimension w/h/d in mm 1200/470/675
weight 90kg

* peak 10ms, with TD-8000 amplifier and maxum max controller setup
** -10dB with maxum FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and maxum SPL bi-amp controller setup
****system vertical directivity depends on quantity and curving of maxum cabinets

small variety of a wide range for bass cabinet extension
