C-series column speaker cabinets

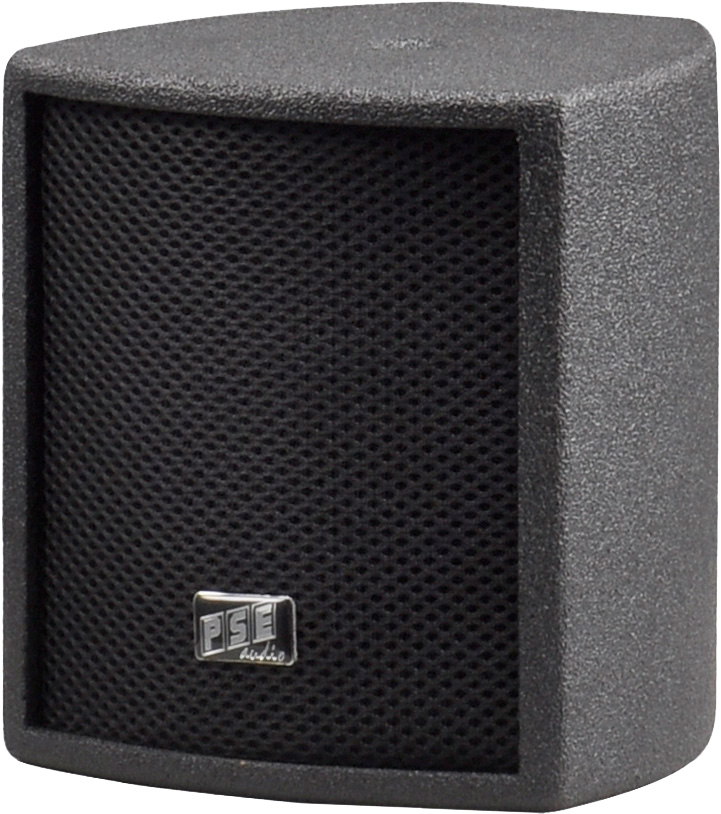

C-series C-41

column series C-41          column series C-41
C-41 general description

Features C-41

  • 1 x 4" speaker ferrite (25mm voice coil)
  • 2 M8 mounting points
  • 2 push terminals
  • perforated steel front grill powder coated
  • acoustic textile 2mm (on top)
  • wood housing class A MDF 10mm
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Application C-41

  • bars & coffee shops
  • shops
  • meeting room
  • home cinema
  • home entertainment HiFi

Appliance C-41

  • high-mid unit for fix installation
  • background music
  • delay line
  • multimedia sound system
  • surround speaker cabinet


column series C-41

C-41 specification
rated impedance (optional) 16Ω (8Ω)
operation mode passive
power handling capacity passive AES/peak* 50W / 150W*
available frequency response** 120Hz-18kHz
max. sound pressure level*** 113dB
directivity (h x v) 90° conical
LF-transducer rated size 4"
LF-transducer voice coil diameter 26mm/1"
LF-transducer magnet structure ferrite
dimension h/w/d in mm 160/145/150
weight 1.9kg

* peak 10ms, with TD-8000 amplifier and C-41 max controller setup
** -10dB with C-41 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and C-41 SPL controller setup

recommended subwoofer

Bass B-802
