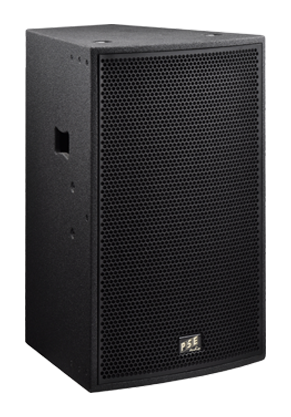

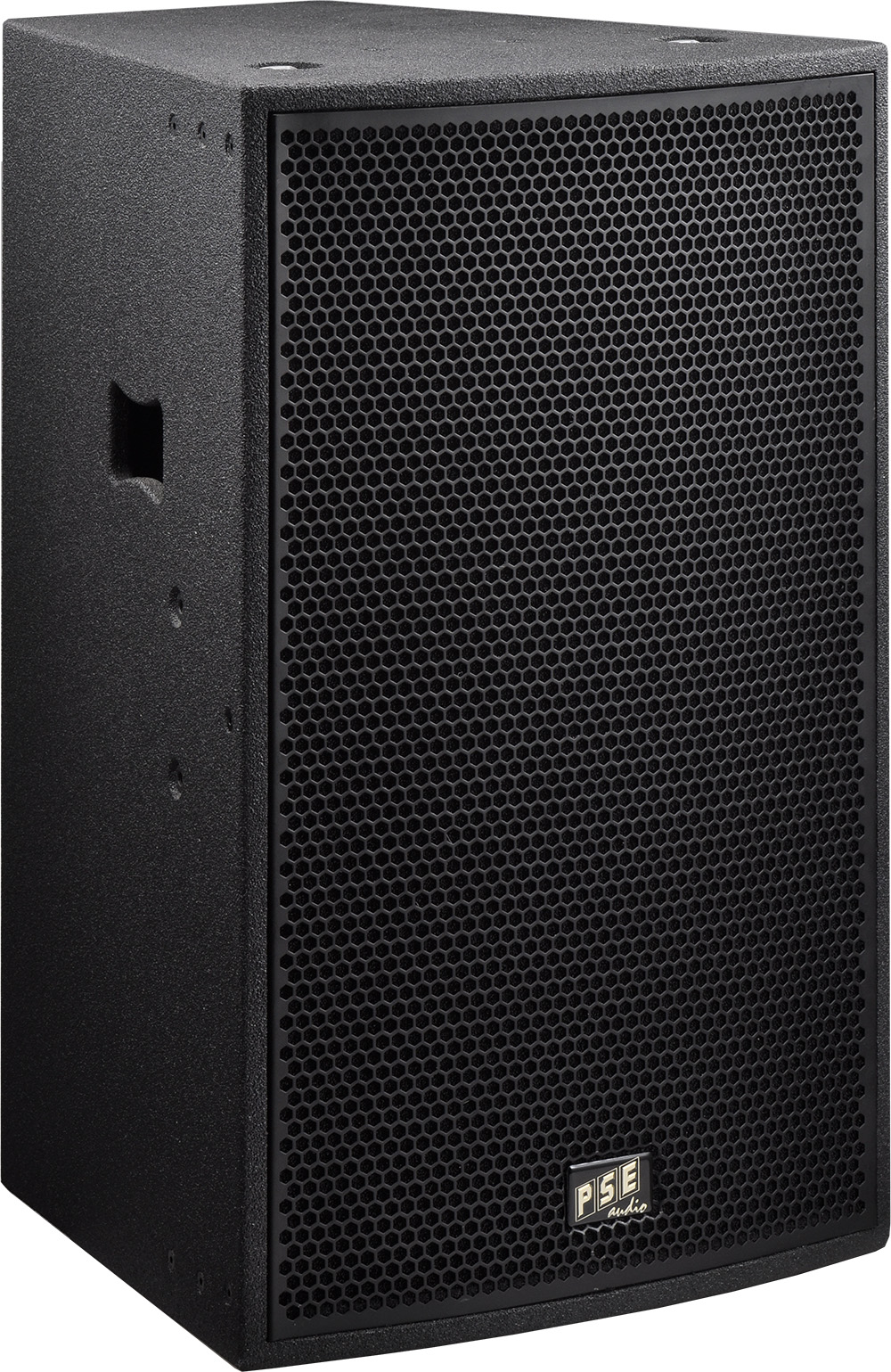

Galaxy series GS-15B

Galaxy-series high end multifunction series


Galaxy series GS-15B          Galaxy series GS-15B
GS-15B general description

Features GS-15B

  • 1x15" speaker ferrite (100mm voice coil)
  • 7 air-lock mounting points
  • 6 M8 mounting points
  • 1 M10 mounting point
  • 1 multi gauge plate 360° / 5° steps
  • 2 Neutrik speakon 4-pin
  • 2 Neutrik speakon 8-pin
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm, 27mm
  • polyurea (PU) high scratch proof coating

Application GS-15B

  • discotheque, clubs, bars, entertainment

Appliance GS-15B

  • low mid extension for GS-15

Galaxy series GS-15B


Galaxy series GS-15B Flugzubehör

GS-15B specification
rated impedance 8 Ω
operation mode passiv
power handling capacity passive AES/peak* 1000W / 4000W*
available frequency response** 45Hz-1500Hz
max. sound pressure level*** 132dB
LF-transducer rated sice 15"
LF-transducer voice coil diameter 100mm/4"
LF-compression magnet structure ferrite
dimension h/w/d in mm 730/460/450
weight 39kg

* peak 10ms, with TD-8000 amplifier and GS-15B max controller setup
** -10dB with GS-15B FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GS-15B SPL bi-amp controller setup
