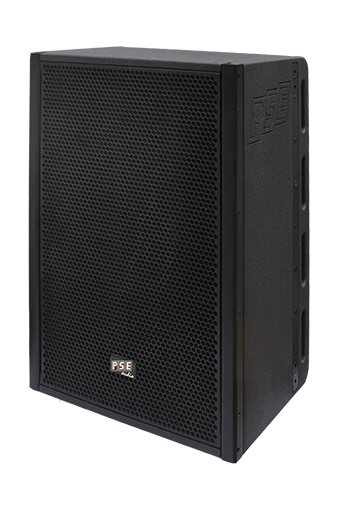

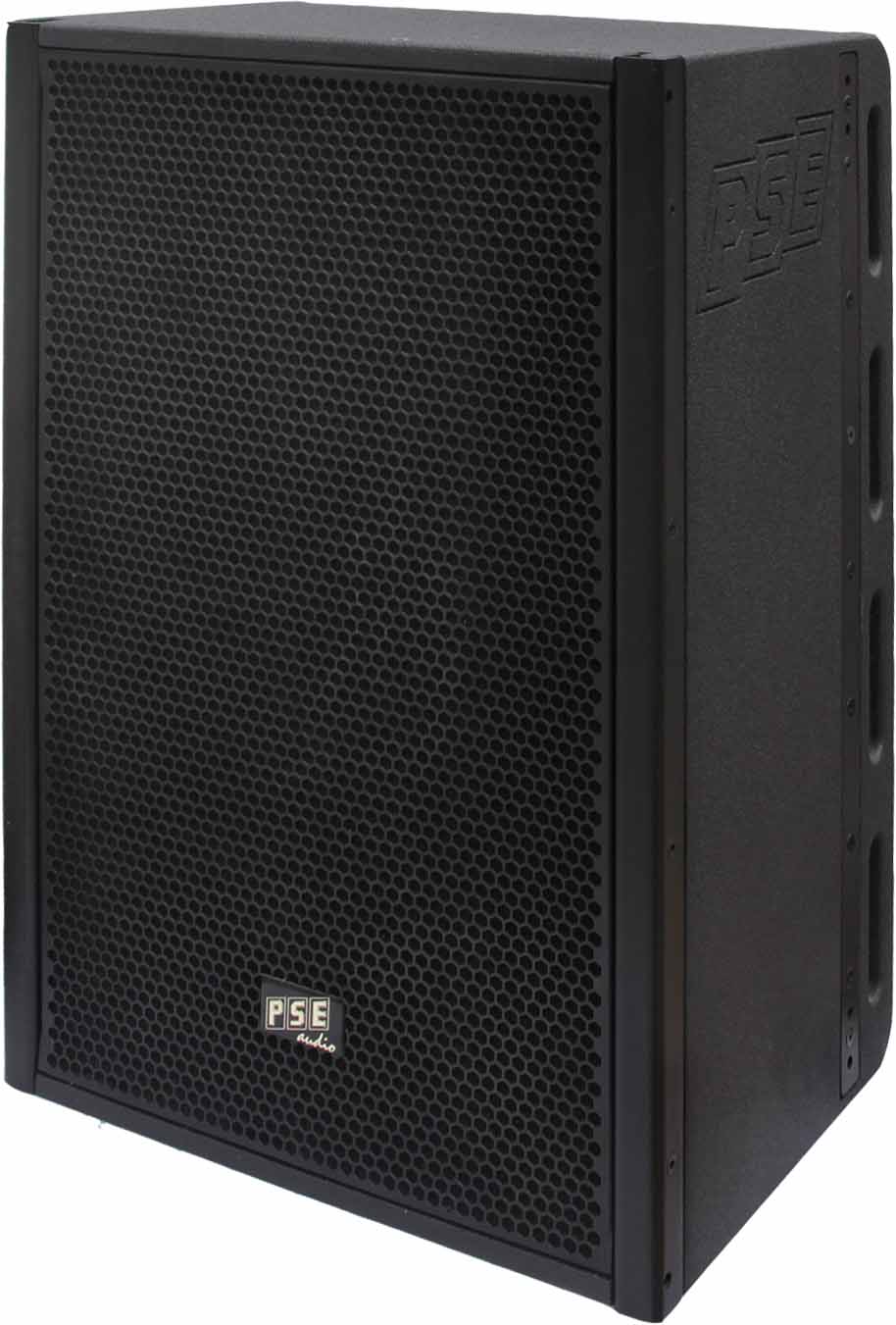

linearray VT-68

Line Array speaker cabinet

VT-68

linearray VT-68          linearray VT-68

VT-68 general description

Features VT-68

  • 8x6.5" neodymium speaker (2"voice coil)
  • 4x2.5" (63mm) neodymium compression driver
  • 4 x high frequency planar wave guide horn
  • directivity h90°/v5°
  • constant horn directivity
  • 3-point and 4-point rigging structure
  • 2 Neutrik speakon 4-pin
  • speaker signal link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing 15mm plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Appliance VT-68

  • starting unit für VT-68 line array
  • can be used stacking applications
  • high-mid unit for mobile and touring PA
  • high-mid unit for fix installation

Application VT-68

  • live events, live entertainment
  • stadium broadcasting,
  • discotheque and mobile disco event
  • meeting halls broadcast system

extended system components

  • LB-15* Low-Mid extension (1x15")
  • B-18 subwoofer (1x18")
  • VB-218 subwoofer (2x18")
    *with rigging hardware

linearray VT-68

linearray VT-68

linearray VT-68

linearray VT-68

VT-68 specification
rated impedance (optional) 8Ω (4Ω/16Ω)
operation mode bi-amp
power handling capacity midrange AES/peak* 1600W / 4800W*
power handling capacity HF AES/peak* 240W / 720W*
available frequency response** 80Hz-20kHz
max. sound pressure level*** 142dB
directivity (h x v) 90°/5°
midrange-transducer rated size 8x6.5"
midrange-transducer voice coil diameter 2" (52mm)
LF-transducer magnet structure neodymium
HF-compression driver rated size (VC) 4x2.5" (63mm)
HF-compression throat diameter 1.4"
HF-compression magnet structure neodymium
dimension w/h/d in mm 480/750/350
weight 50.5kg

* peak 10ms, with TD-8000 amplifier and VT-68max controller setup
** -10dB with VT-68 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and VT-68 SPL bi-amp controller setup
****system vertical directivity depends on quantity and curving of VT-68 cabinets
