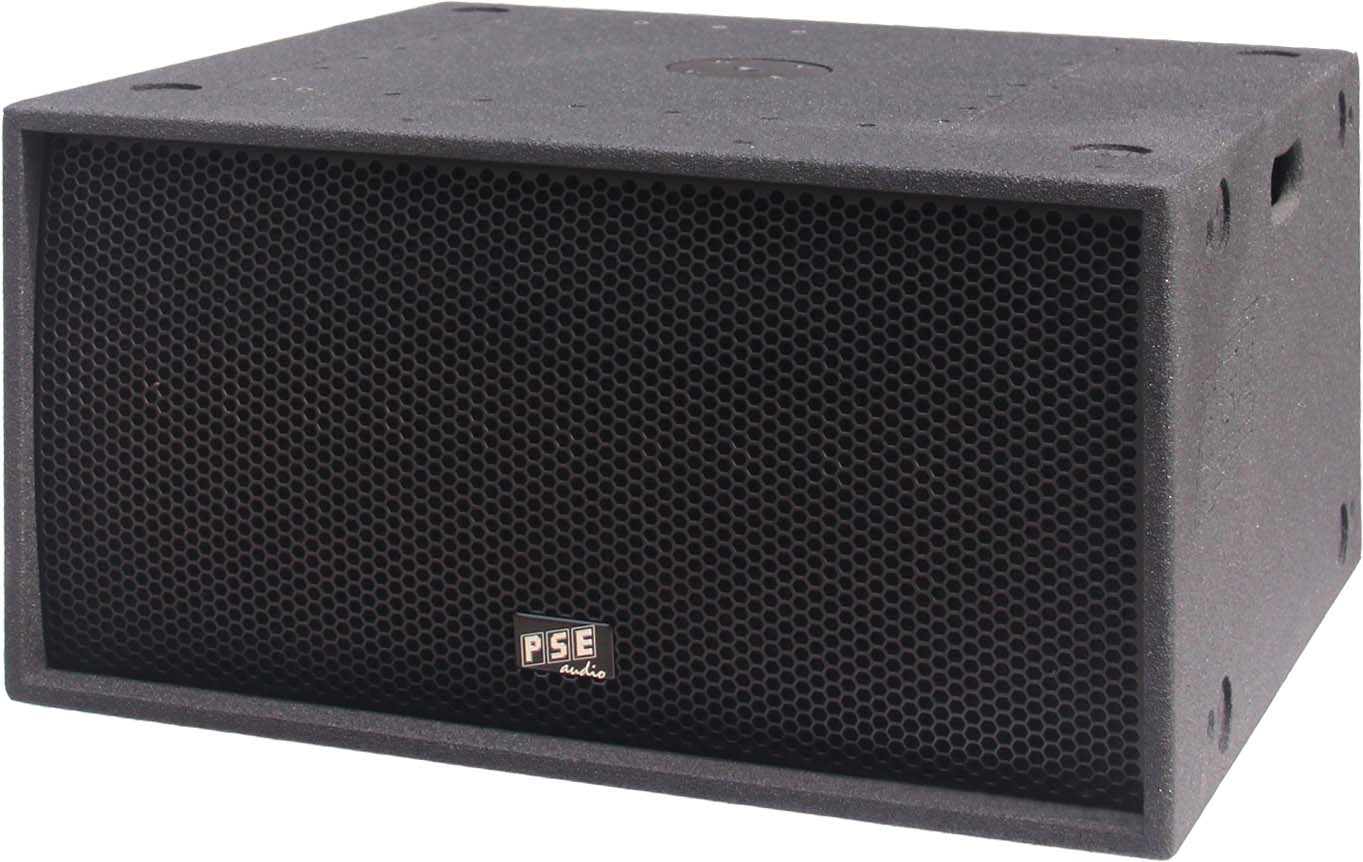

basssub SB-15



basssub SB-15          basssub SB-15

SB-15 general description

Features SB-15

  • 15" neodymium speaker (4"/100mm voice coil)
  • bandpass design
  • super low-slung construction
  • 8 x M8 mounting points
  • 2 x M20 pole mount plate
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 8 x rubber feet
  • stackable in two directions
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white


basssub SB-15

SB-15 specification
rated impedance (optional) 8Ω (16Ω)
power handling capacity AES/peak* 1000W / 3000W*
available frequency response** 35Hz-180Hz
max. sound pressure level*** 130dB
LF-transducer rated size 15"
LF-transducer voice coil diameter 4"/100mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 700/373/650
weight 32.4kg

* peak 10ms, with TD-8000 amplifier and SB-15 max controller setup
** -10dB with SB-15 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and SB-15 SPL controller setup
