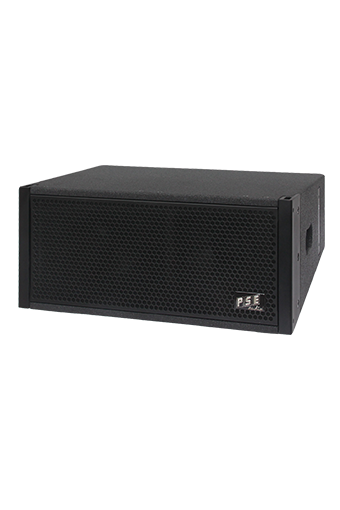

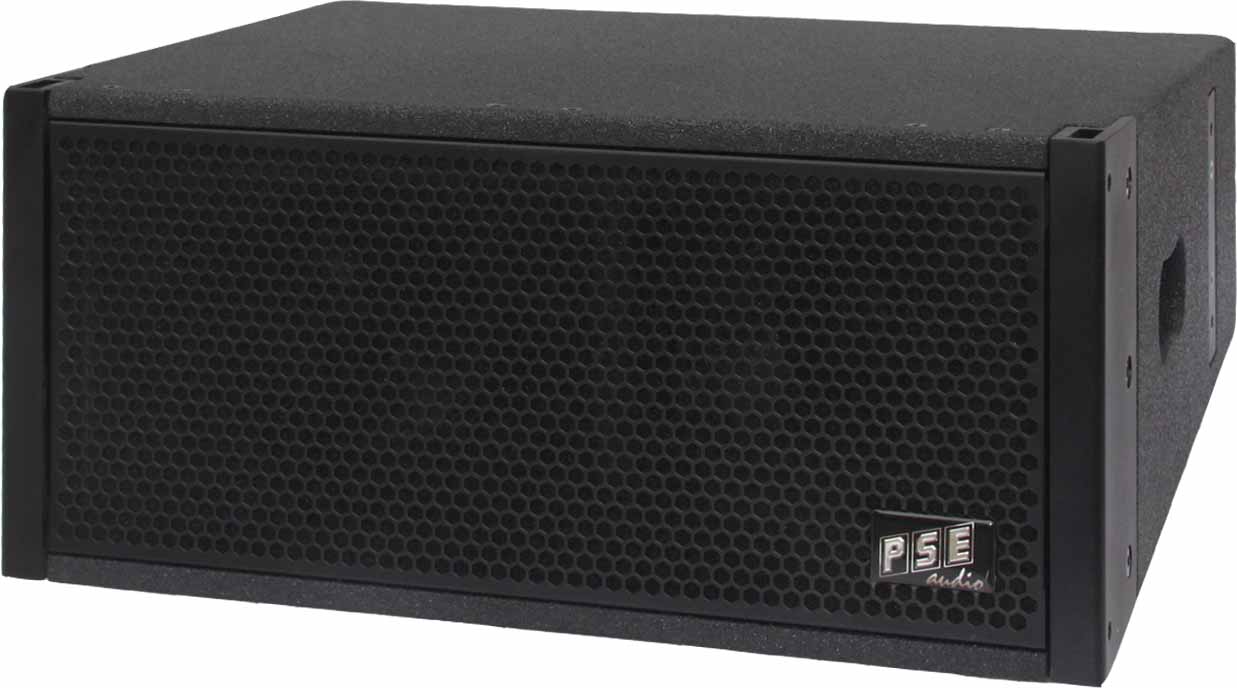

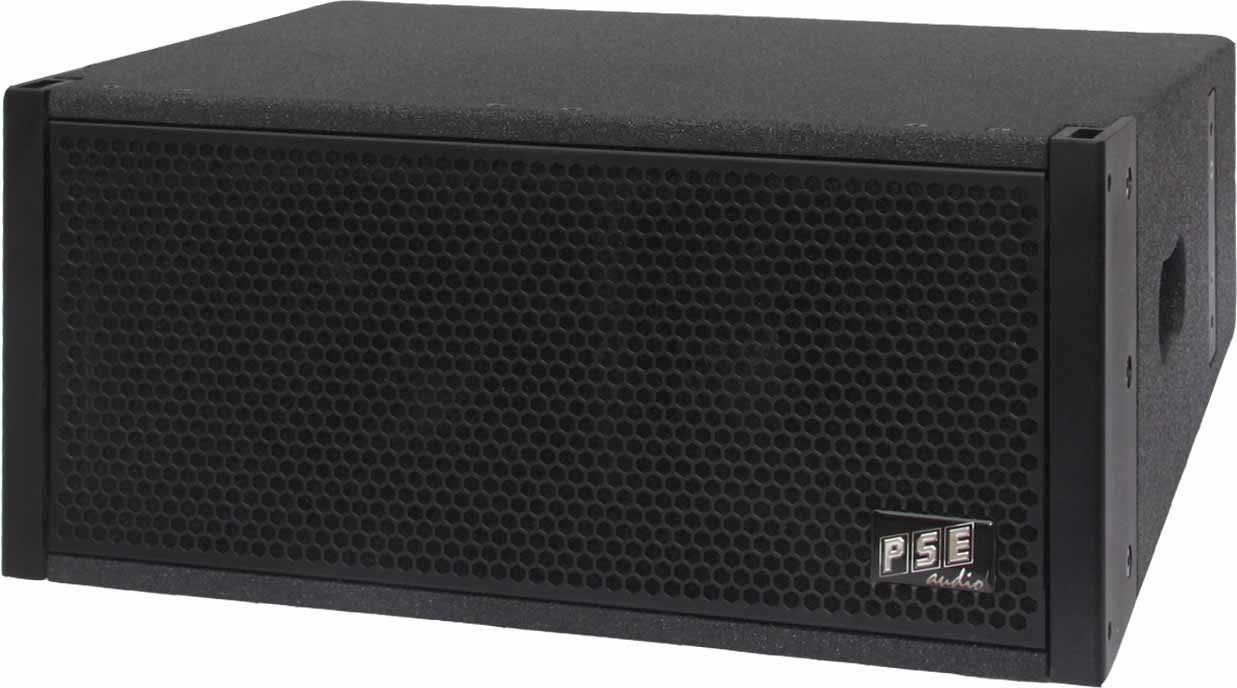

linearray Vector-8

Line Array speaker cabinet

Vector-8

linearray Vector-8          linearray Vector-8

Vector-8 general description

Features Vector-8

  • 2x8" speaker (2.5"voice coil)
  • 1x2.5" (63mm) neodymium compression driver
  • high frequency planar wave guide horn
  • wave guide horn directivity h110°/v10°
  • constant horn directivity
  • curving angles 0°-10° in 1° steps
  • 4-point rigging structure
  • 2 Neutrik speakon 4-pin
  • speaker signal link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing 15mm and 28mm plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Appliance Vector-8

  • ine array unit for mobile and touring PA
  • line array unit for fix installation

Application Vector-8

  • live events, live entertainment
  • stadium broadcasting,
  • discotheque and mobile disco event
  • meeting halls broadcast system

extended system components

  • LB-3* Low-Mid extension (1x18")
  • B-18 subwoofer (1x18")
  • VB-218 subwoofer (2x18")
    *with rigging hardware

linearray Vector-8

linearray Vector-8

linearray Vector-8

linearray Vector-8

Vector-8 specification
rated impedance 16Ω (8Ω)
operation mode bi-amp
power handling capacity midrange AES/peak* 500W / 1500W*
power handling capacity HF AES/peak* 60W / 180W*
available frequency response** 60Hz-20kHz
max. sound pressure level*** 139dB
directivity (h x v) 110°/10°
midrange-transducer rated size 2x8"
midrange-transducer voice coil diameter 2.5" (64mm)
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 2.5" (63mm)
HF-compression throat diameter 1.4"
HF-compression magnet structure neodymium
dimension w/h/d in mm 580/265/500
weight 27.8kg

* peak 10ms, with TD-8000 amplifier and Vector 8 max controller setup
** -10dB with Vector 8 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and Vector 8 SPL bi-amp controller setup
****system vertical directivity depends on quantity and curving of Vector 8 cabinets

small variety of a wide range for bass cabinet extension
