Galaxy-series high end multifunction series

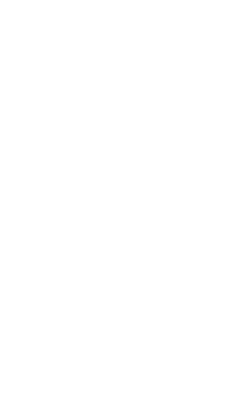

Galaxy series GS-12          Galaxy series GS-12
GS-12 general description

Features GS-12

  • 1x12" speaker neodymium (75mm voice coil)
  • 1x1.75" (45mm) compression driver neodymium
  • high frequency horn 1" throat
  • horn directivity h90°/v60°
  • 90° turnable high frequency horn to v60°/h90°
  • multifunction housing
  • wedge angle 45°
  • tripod (pole mount) flange
  • 7 air-lock mounting points
  • 5 M8 mounting points
  • 1 M10 mounting point
  • 1 multi gauge plate 360° / 5° steps
  • 2 Neutrik speakon 4-pin for passive
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application GS-12

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance GS-12

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • floor monitor
  • near fill
  • delay line


Galaxy series GS-12

GS-12 specification
rated impedance 8 Ω
operation mode switchable passiv
power handling capacity passive AES/peak* 500W / 1800W*
available frequency response** 65Hz-20kHz
max. sound pressure level*** 134dB
directivity (h x v) 90°/60° (90°drehbar)
LF-transducer rated sice 12"
LF-transducer voice coil diameter 75mm/3"
LF-transducer magnet structure Neodymium
HF-compression driver rated sice (VC) 45mm/1,75"
HF-compression throat diameter 1"
HF-compression magnet structure Neodymium
dimension h/w/d in mm 580/400/320
weight 17,5kg

* peak 10ms, with TD-8000 amplifier and GS-12 max controller setup
** -10dB with GS-12 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GS-12 SPL controller setup
