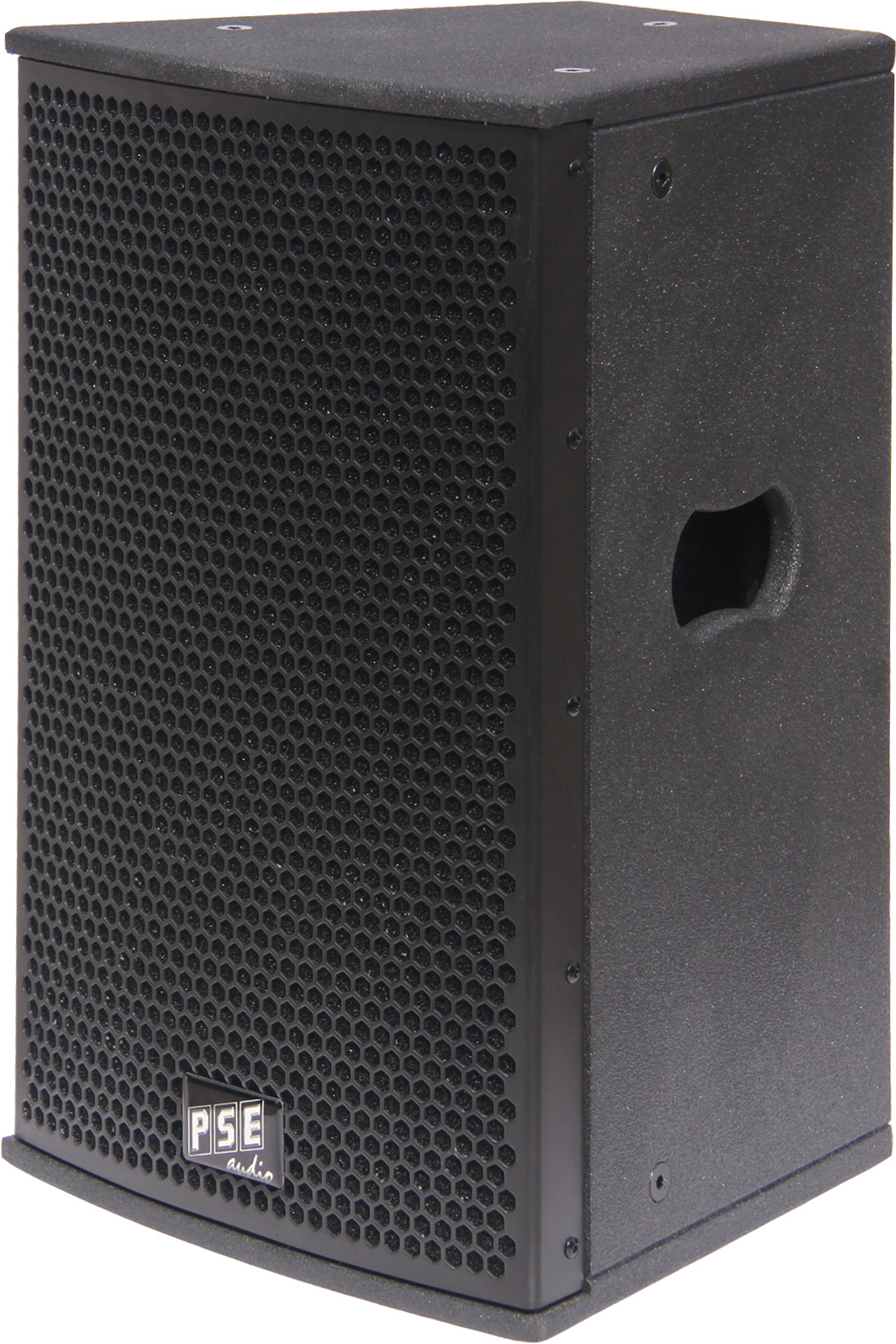

ecoline EL-10

ecoline EL -series satellite and fullrange series


ecoline EL-10          ecoline EL-10

EL-10 general description

Features EL-10

  • 10" speaker ferrite (2.5"/64mm voice coil)
  • 1x1.35" (34mm) compression driver ferrite
  • high frequency horn 1" throat
  • horn directivity h90°/v60°
  • 90° turnable high frequency horn to v60°/h90°
  • trapezoid housing
  • tripod (pole mount) flange
  • 12 M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing class A MDF 15mm
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Application EL-10

  • discotheque, clubs, bars, entertainment,
  • meeting room

Appliance EL-10

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • background music
  • delay line



ecoline EL-10

EL-10 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 400W / 1200W*
available frequency response** 70Hz-20kHz
max. sound pressure level*** 128dB
directivity (h x v) 90°/60° (90°rotatable)
LF-transducer rated size 10"
LF-transducer voice coil diameter 64mm/2.5"
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 34mm/1.35"
HF-compression throat diameter 1"
HF-compression magnet structure ferrite
dimension h/w/d in mm 474/320/270
weight 15kg

* peak 10ms, with TD-8000 amplifier and EL-10 max controller setup
** -10dB with EL-10 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and EL-10 SPL controller setup
