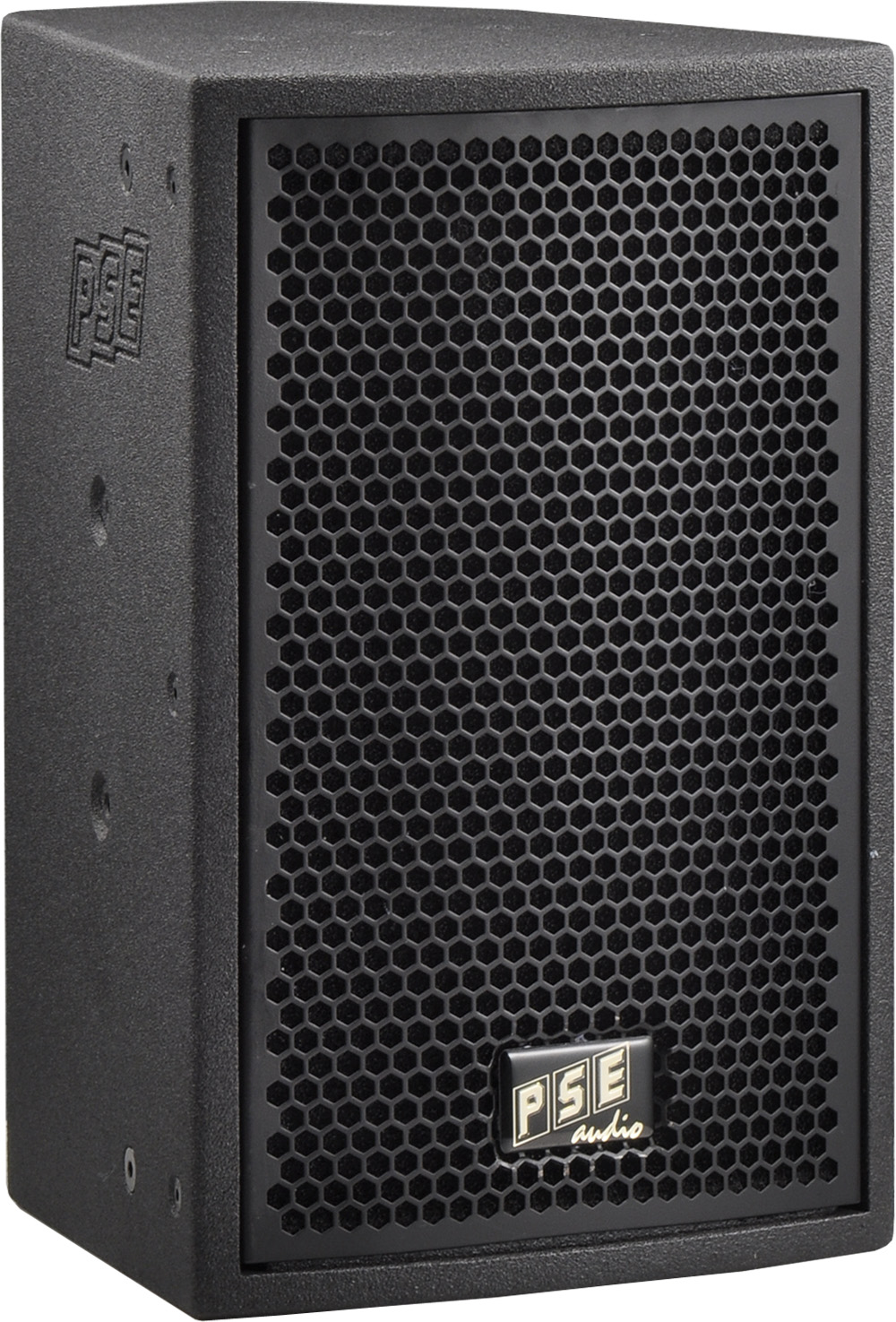

Galaxy series GS-16

Galaxy-series high end multifunction series


Galaxy series GS-16          Galaxy series GS-16
GS-16 general description

Features GS-16

  • 1x6.5" speaker ferrite (35mm voice coil)
  • 1x1.35" (34mm) compression driver ferrite
  • high frequency horn 1" throat
  • horn directivity h90°/v60°
  • 90° turnable high frequency horn to v60°/h90°
  • multifunction housing
  • wedge angle 45° and 30°
  • 8 M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application GS-16

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance GS-16

  • high-mid unit for fix installation
  • floor monitor
  • near fill
  • delay line

Galaxy series GS-16

GS-16 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 200W / 500W*
available frequency response** 90Hz-20kHz
max. sound pressure level*** 120dB
directivity (h x v) 90°/60° (90°rotatable)
LF-transducer rated sice 6.5"
LF-transducer voice coil diameter 35mm/1,35"
LF-transducer magnet structure ferrite
HF-compression driver rated sice (VC) 34mm/1,35"
HF-compression throat diameter 1"
HF-compression magnet structure ferrite
dimension h/w/d in mm 343/200/210
weight 7kg

* peak 10ms, with TD-8000 amplifier and GS-16 max controller setup
** -10dB with GS-16 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GS-16 SPL controller setup
