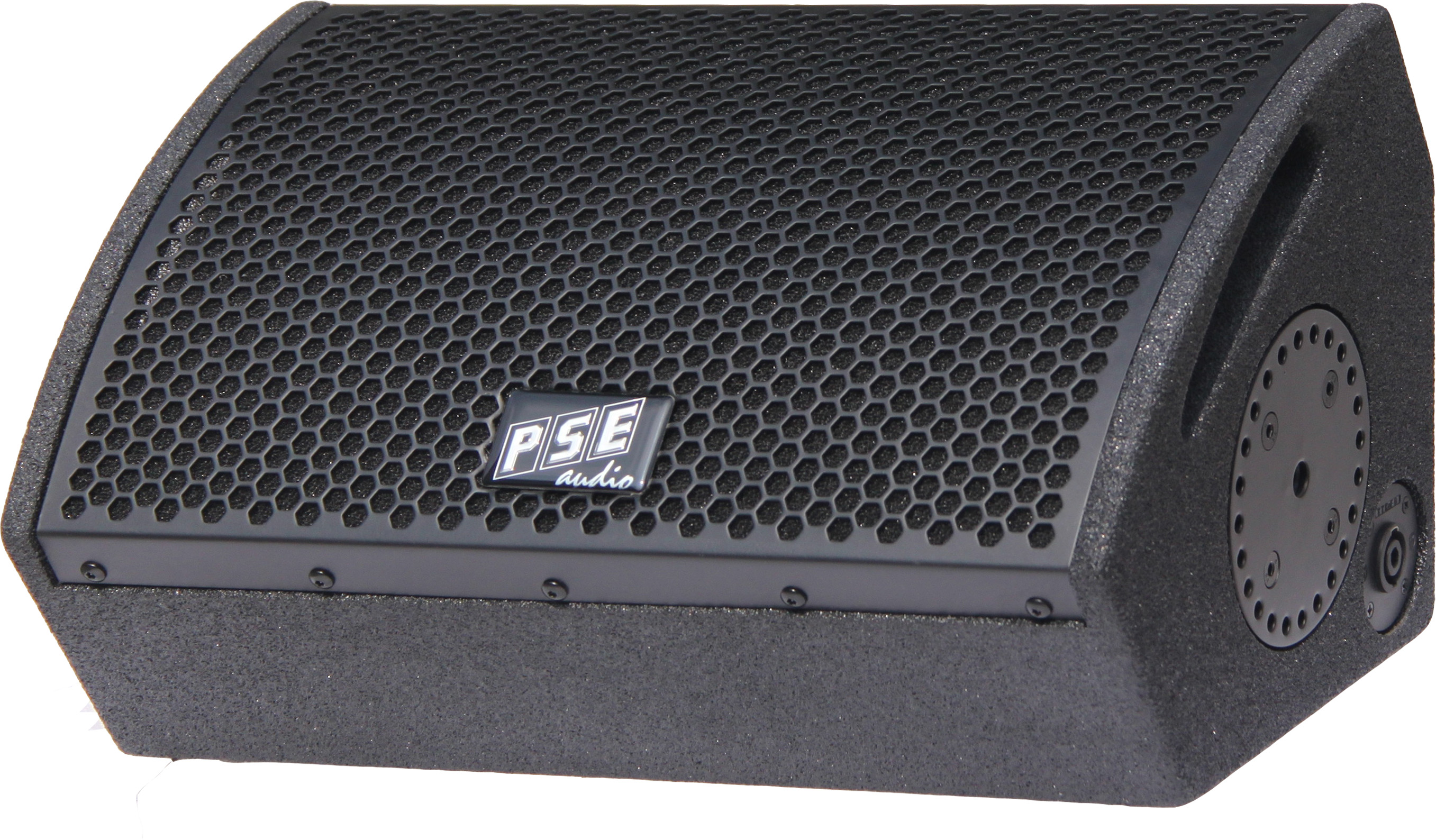

coaxial series CX-8          coaxial series CX-8
CX-8 general description

Features CX-8

  • 1x8"/1.35" coaxial speaker
  • 8" transducer 52mm /2" voice coil
  • 8" transducer ferrite magnet
  • compression driver 1.35"/34mm voice coil
  • compression driver ferrite magnet
  • high frequency horn 1" throat
  • horn directivity 80° conical
  • multifunction housing
  • wedge angle 30° and 60°
  • 1 M10 mounting points
  • 1 multi gauge plate 360° / 15° steps
  • tripod (pole mounting) flange
  • 4 Neutrik speakon 4-pin
  • speakon terminals at 3 sides of the cabinet
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application CX-8

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance CX-8

  • high-mid unit for fix installation
  • floor monitor
  • near fill
  • delay line


coaxial series CX-8

CX-8 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 300W / 900W*
available frequency response** 68Hz-20kHz
max. sound pressure level*** 125dB
directivity (h x v) 80° conical
LF-transducer rated size 8"
LF-transducer voice coil diameter 52mm/2"
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 34mm/1.35"
HF-compression throat diameter 1"
HF-compression magnet structure ferrite
dimension h/w/d in mm 400/253/240
weight 10kg

* peak 10ms, with TD-8000 amplifier and CX-8 max controller setup
** -10dB with CX-8 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and CX-8 SPL controller setup
