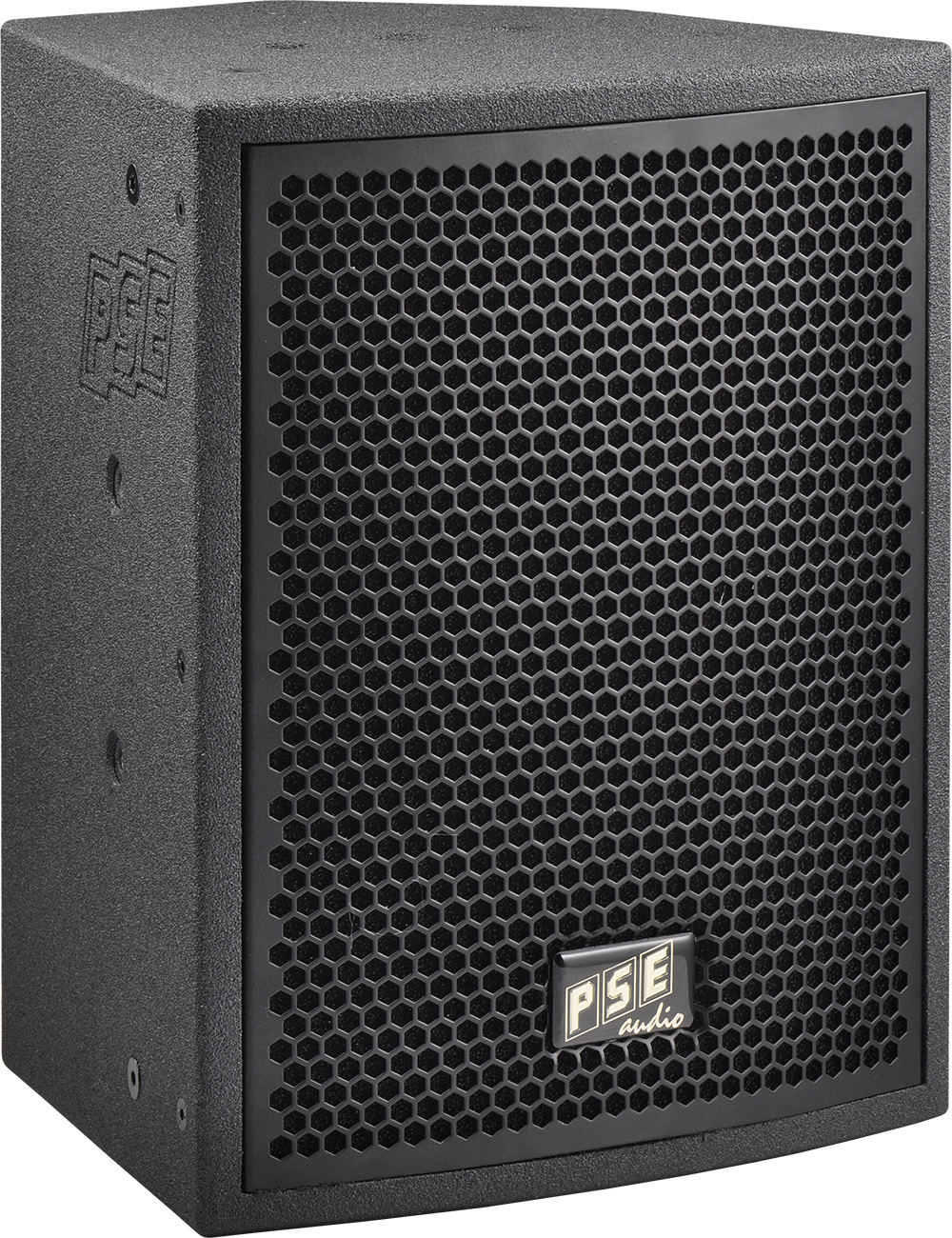

Galaxy series GX-10

Galaxy-GX-series high end multifunction coaxial series


Galaxy series GX-10          Galaxy series GX-10
GX-10 general description

Features GX-10

  • 1x10"/1.75" coaxial speaker neodymium
  • 10" transducer 64mm /2.5" voice coil
  • 10" transducer neodymium magnet
  • compression driver 1.75"/44mm voice coil
  • compression driver neodymium magnet
  • high frequency horn 1" throat
  • horn directivity 80° conical
  • multifunction housing
  • wedge angle 45°
  • tripod (pole mounting) flange
  • 18 M8 mounting points
  • 1 M10 mounting point
  • 1 multi gauge plate 360° / 5° steps
  • 2 Neutrik speakon 4-pin for passive
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application GX-10

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance GX-10

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • floor monitor
  • delay line


Galaxy series GX-10

GX-10 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 400W / 1200W*
available frequency response** 68Hz-20kHz
max. sound pressure level*** 128dB
directivity (h x v) 80° conical
LF-transducer rated size 10"
LF-transducer voice coil diameter 64mm/2.5"
LF-transducer magnet structure neodymium
HF-compression driver rated size (VC) 44mm/1,75"
HF-compression throat diameter 1"
HF-compression magnet structure neodymium
dimension h/w/d in mm 380/320/270
weight 13.5kg

* peak 10ms, with TD-8000 amplifier and GX-10 max controller setup
** -10dB with GX-10 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GX-10 SPL controller setup
