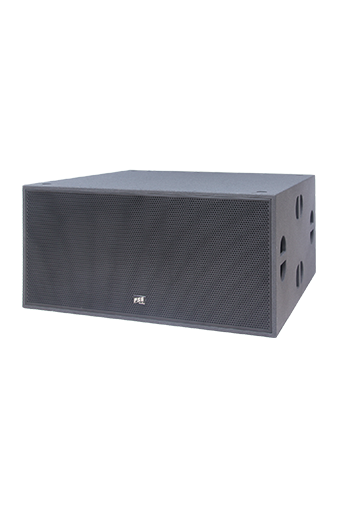

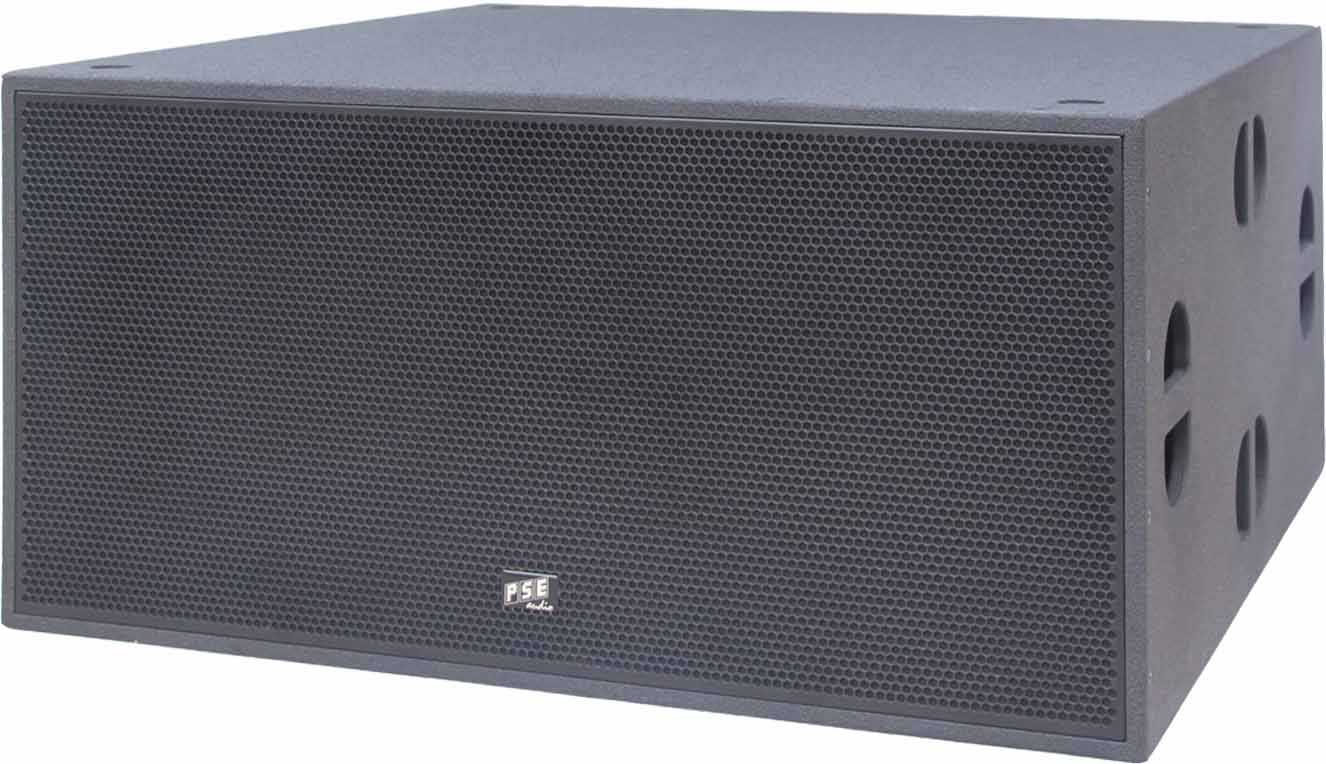

basssub VB-218

subwoofer

VB-218

basssub VB-218          basssub VB-218

VB-218 general description

Features VB-218

  • 2x18" Speaker (5"/125mm voice coil)
  • bass reflex design
  • European truck space optimized dimension
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 8 x rubber feet
  • stackable in two directions
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white
  • optional 4 steering caster on the back side
  • optional front board with butterfly locks
  • optional detto. with 4 steering caster




basssub VB-218

VB-218 specification
rated impedance (optional) 8Ω (4Ω,16Ω)
power handling capacity AES/peak* 3000W / 9000W*
available frequency response** 30Hz-80Hz
max. sound pressure level*** 140dB
LF-transducer rated size 2x18"
LF-transducer voice coil diameter 5"/125mm
LF-transducer magnet structure ferrite
dimension w/h/d in mm 1200/580/1040
weight 112kg

* peak 10ms, with TD-8000 amplifier and VB-218 max controller setup
** -10dB with VB-218 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and VB-218 SPL controller setup
