basssub VB-218pro

subwoofer

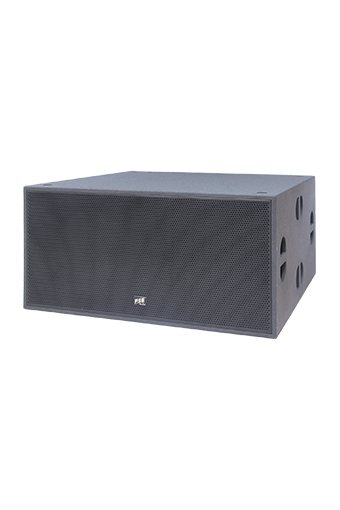

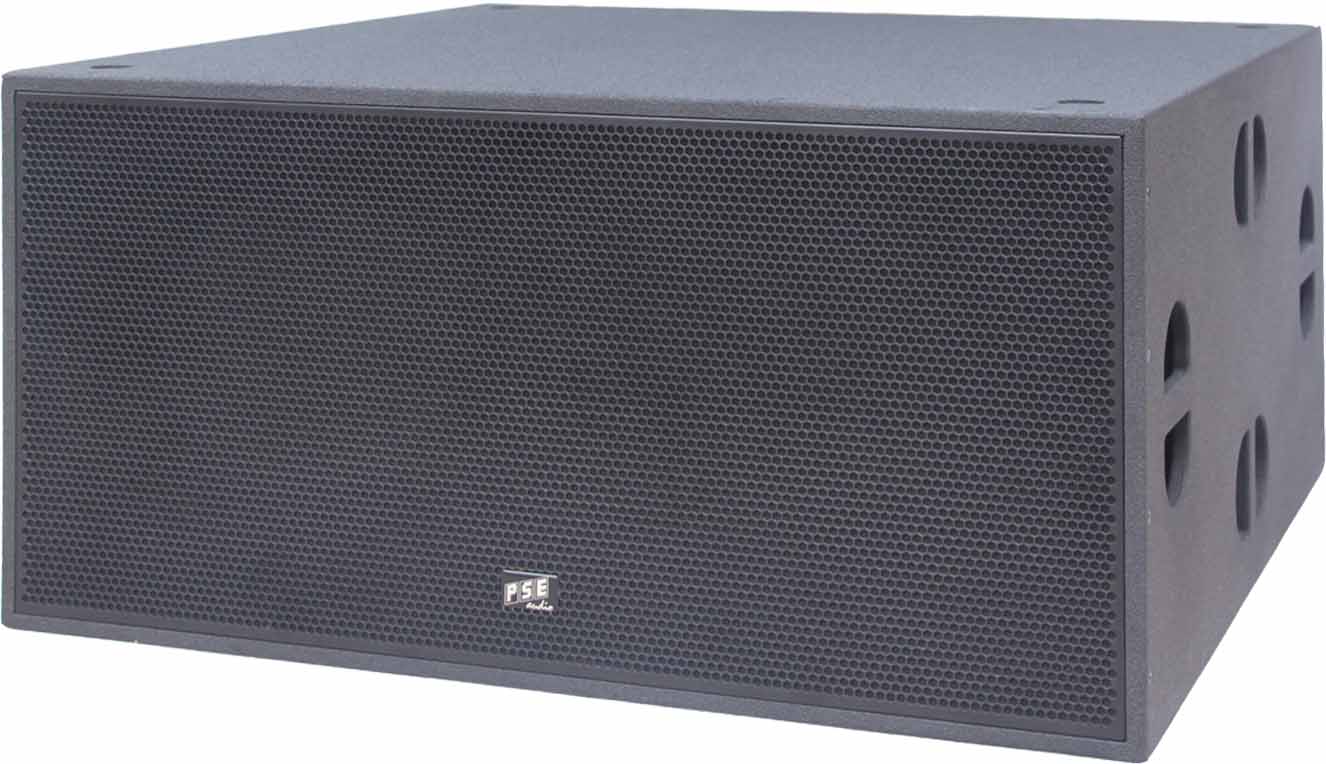

VB-218pro

basssub VB-218pro          basssub VB-218pro

VB-218pro general description

Features VB-218pro

  • 2x18" Neodymium speaker (6"/150mm voice coil)
  • bass reflex design
  • European norm truck optimized dimension
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 8 x rubber feet
  • stackable in two directions
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white
  • optional 4 steering caster on the back side
  • optional front board with butterfly locks
  • optional detto. with 4 steering caster




basssub VB-218pro

VB-218pro specification
rated impedance (optional) 8Ω (4Ω,16Ω)
power handling capacity AES/peak* 4000W / 12000W*
available frequency response** 30Hz-80Hz
max. sound pressure level*** 142dB
LF-transducer rated size 2x18"
LF-transducer voice coil diameter 6"/150mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 1200/580/1040
weight 98kg

* peak 10ms, with TD-8000 amplifier and VB-218pro max controller setup
** -10dB with VB-218pro FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and VB-218pro SPL controller setup
